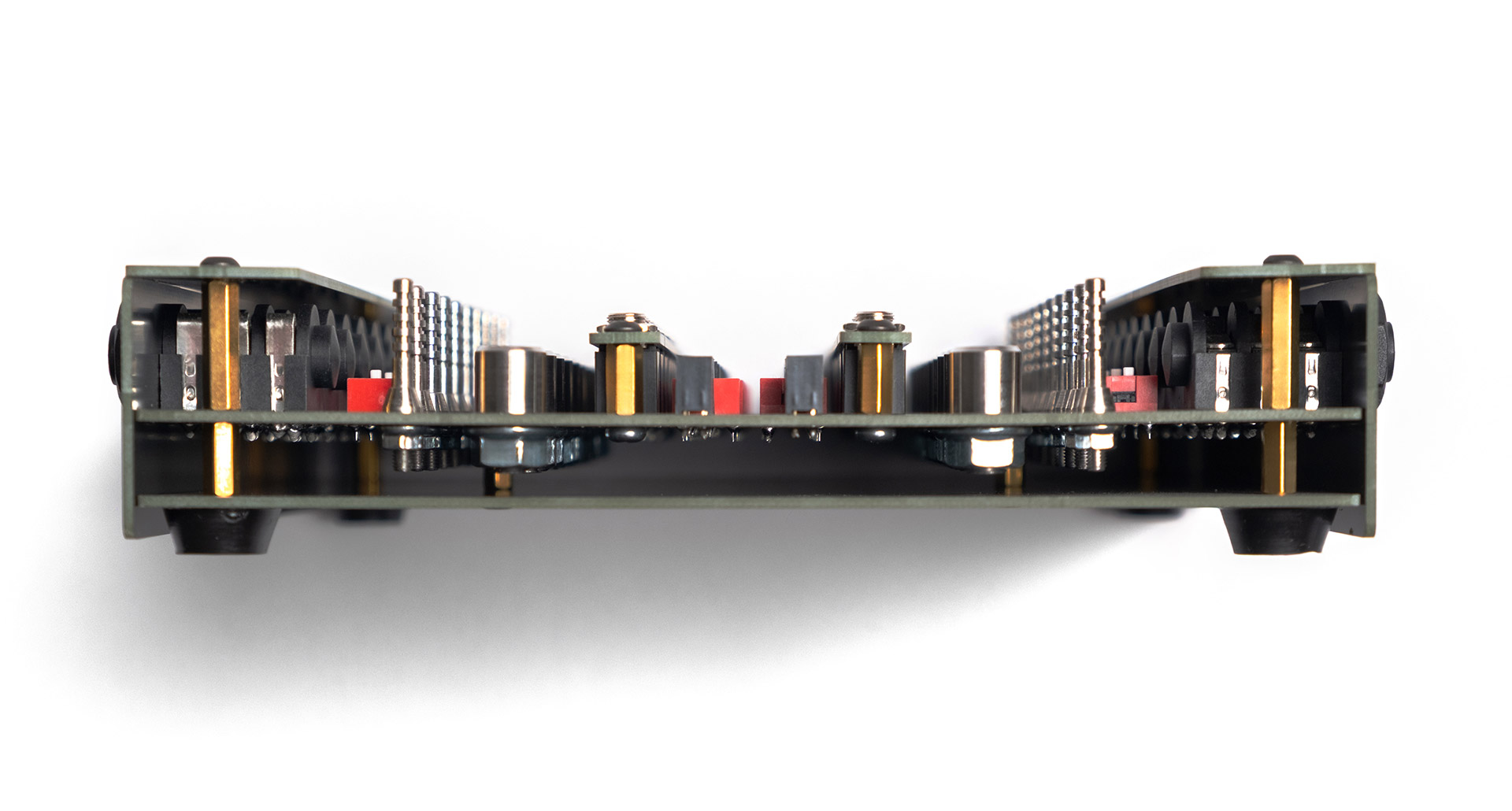

Mad Sound Factory KOMMUTATOR Pro

Description

Mad Sound Factory KOMMUTATOR PRO allows to connect signals of various formats (SOMA Alligator Pins, Banana, Eurorack Jack 3.5 mm, 1/4" Phono Jack, Pinheader Connector) without any need in adapter cables.

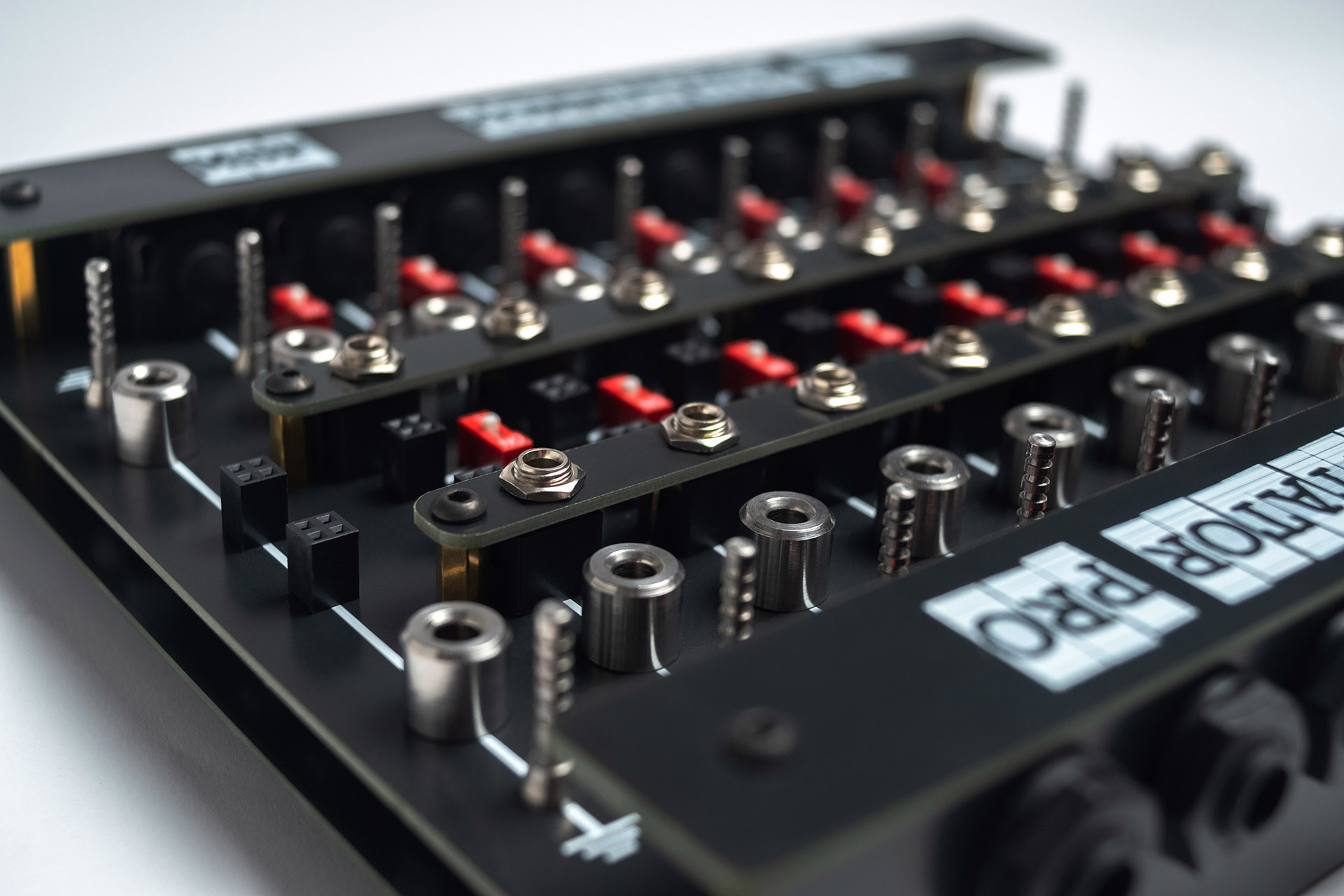

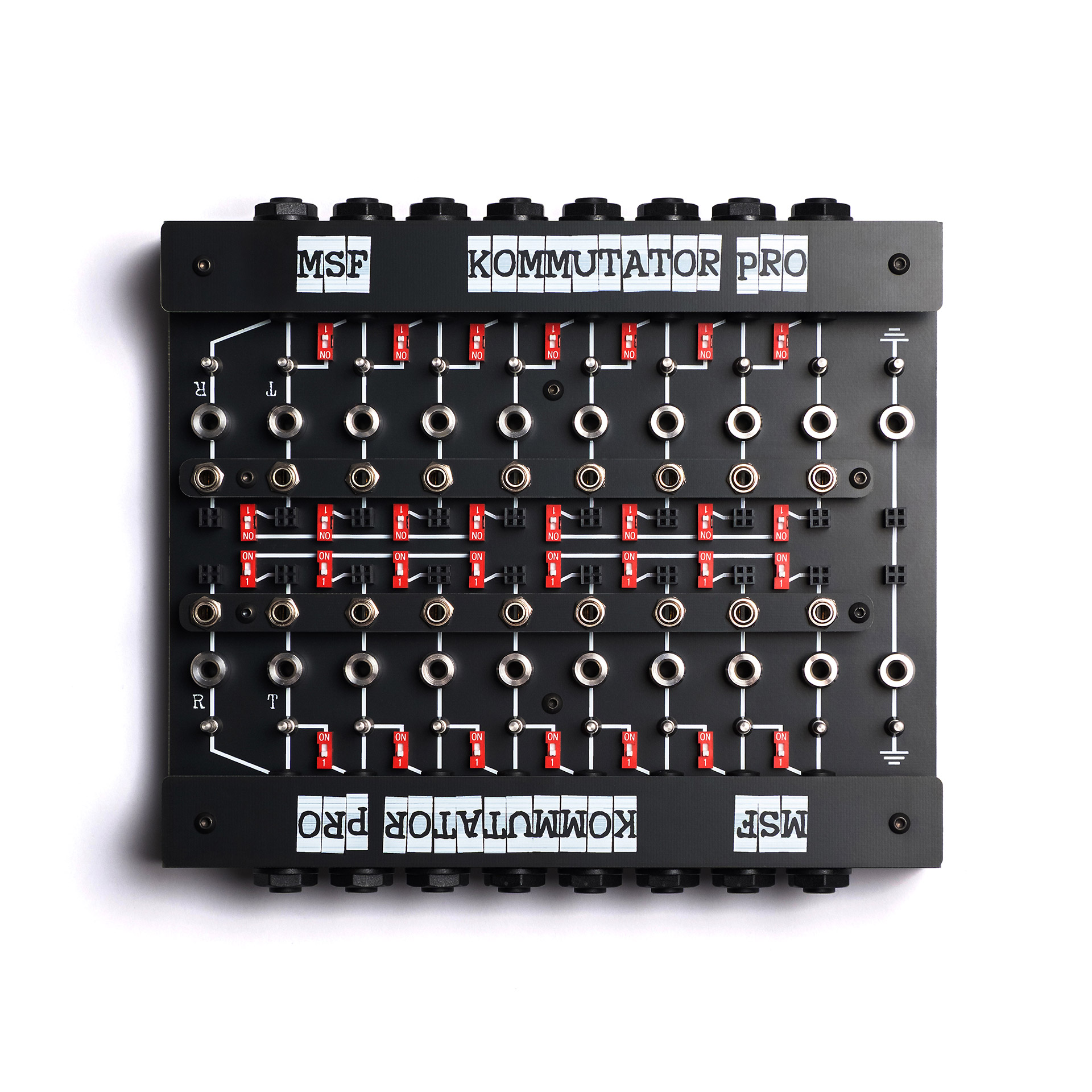

Switches located in the center of The KOMMUTATOR Pro board allow to combine signals and use it as a splitter (horizontal connections).

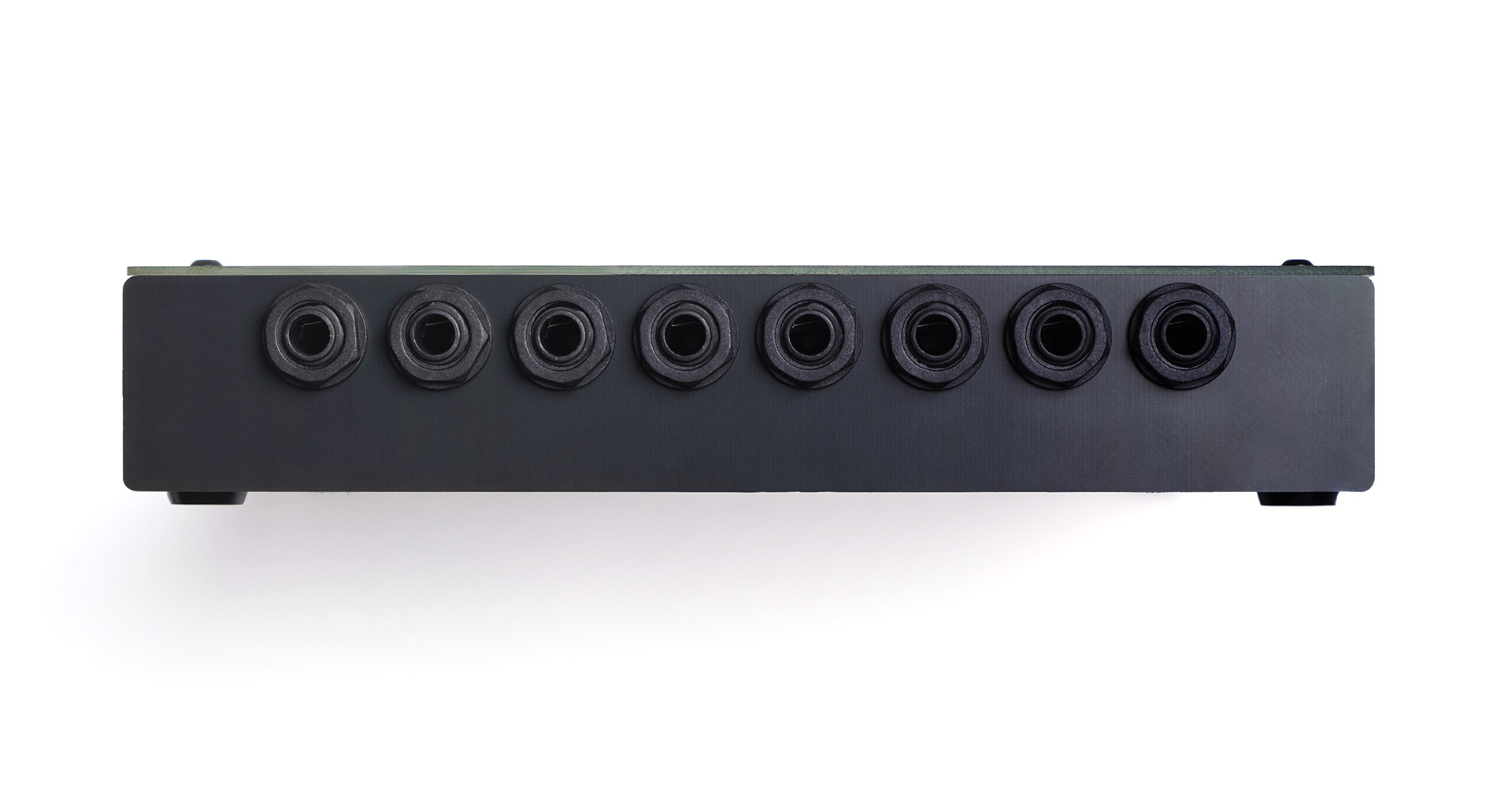

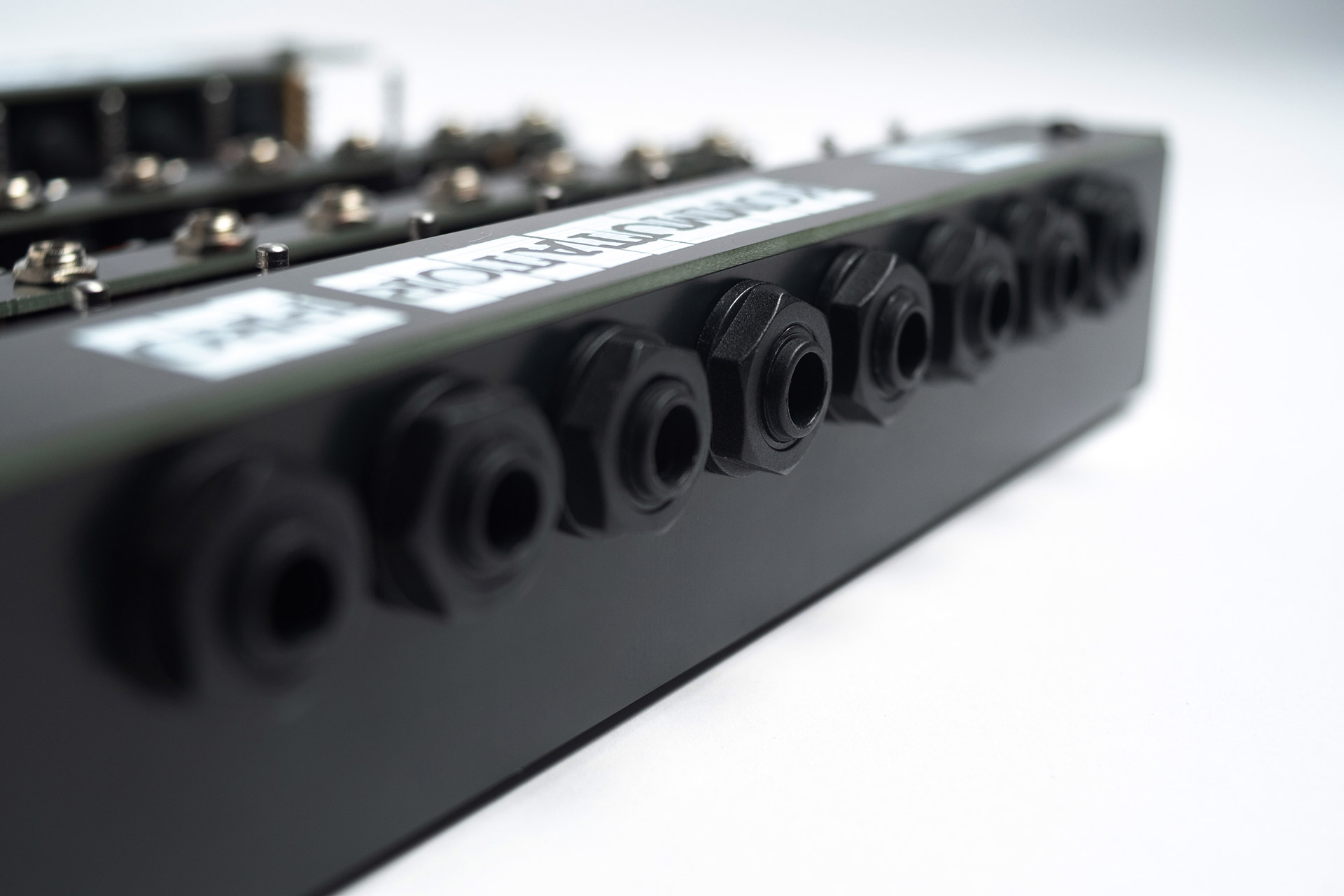

Switches located near the 1/4" Jacks allows to use TRS Stereo Jack, connecting the Ring contact to vertical connections with jacks of different formats.

With The KOMMUTATOR Pro, you no longer need to have a “zoo” of adapter cables to patch your gear.

Key features:

• 18 independent conversion lines (SOMA Alligator Pins — Banana Jack — Eurorack 3.5mm Jack — 1/4" TRS Jack — IDC Pin Headers)
• 2 pair of conversion lines combined to tips and rings of TRS 1/4" Jacks
• Dedicated switches, connecting rings of TRS jacks to adjacent lines
• 4 signal busses

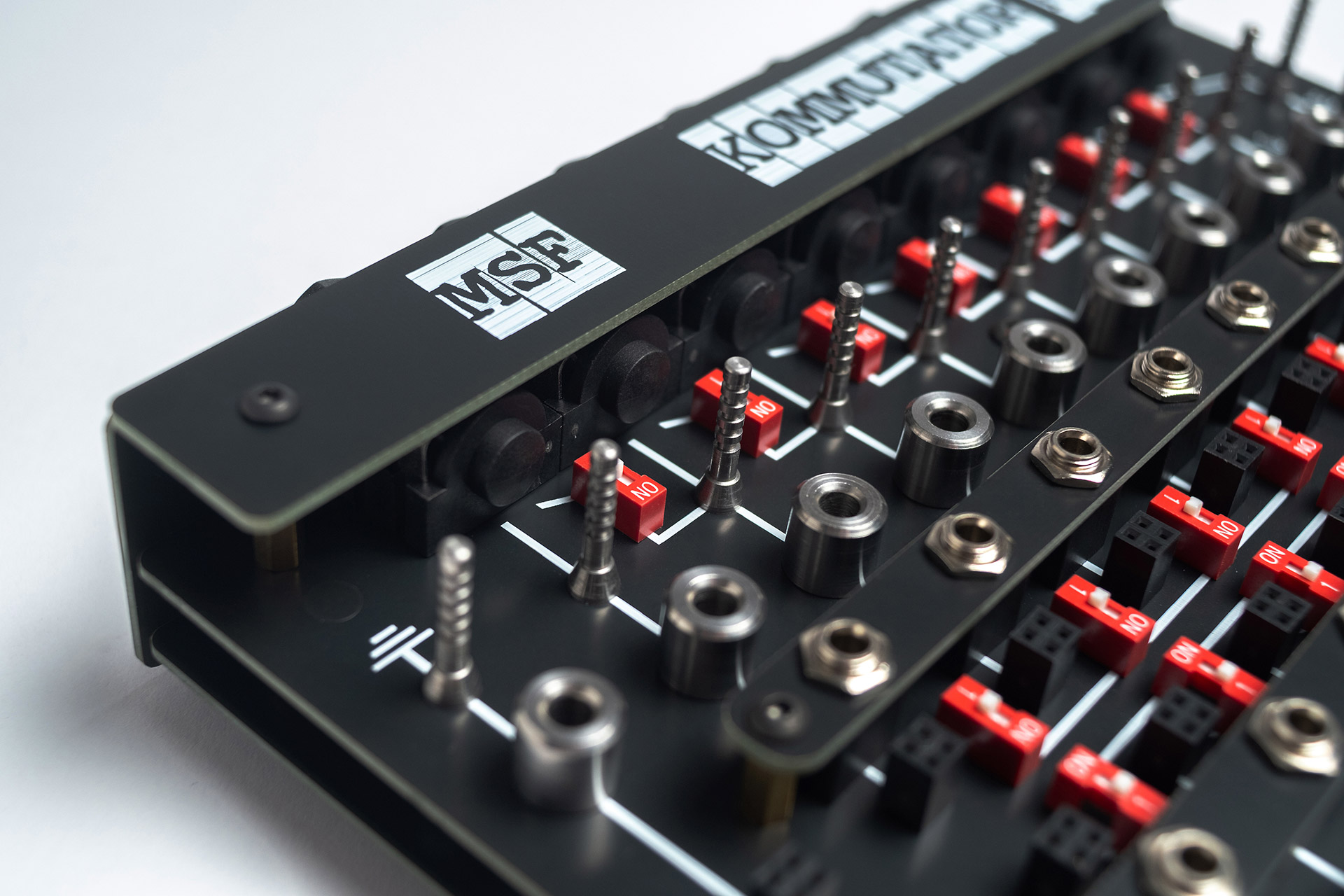

• Dedicated ground bus (SOMA Alligator Pins — Banana Jack — IDC Pin Headers)

Small details can vary from batch to batch. We do not make any changes that are cutting the functionality, only minor improvements.

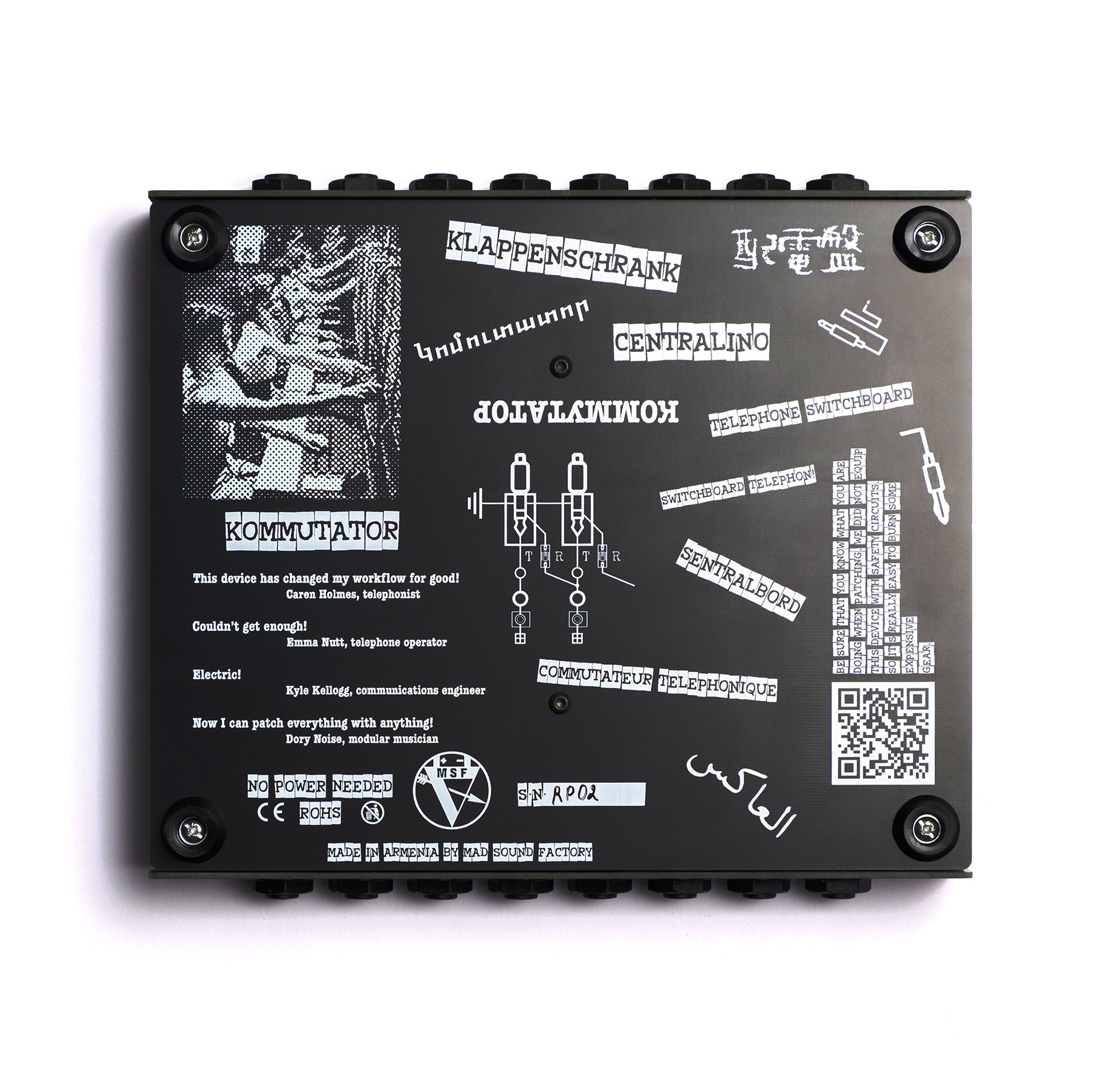

Made in Armenia, one year warranty.
